    Vacuum Wood Grain Machine For Wooden Door 3500mm*1500m Working table

    Ask Lasest Price
    Brand Name : HM
    Price : USD 8000-12000
    Payment Terms : D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 200 sets one year
    Delivery Time : 10days
    • Product Details
    • Company Profile

    Vacuum Wood Grain Machine For Wooden Door 3500mm*1500m Working table

    vacuum wood effect grain transfer machine for Wooden door

    1. Product Description

    Product Application

    The equipment is used to transfer the wood grain to wooden doors.

    Wood effect machine Working Process

    First put the door on the platform, the surface dust blowing clean, and then sprayed with special plastic glue to ensure that the front door, the side


    are even cloth rubber, if you need to do stripes effect, you can do in the stripes where the laying of cutting Good transfer film.After the glue dry


    ,put the door on the plastic machine platform, covered with grain transfer film, adjust machine temperature to 120-140 degrees, the blister


    pressure transferred to 0.7-0.8Mpa for plastic. The Secondary spray glue and plastic, repeat the first process .


    Specifications of wood grain transfer machine

    No

    Name

    Parameters

    1

    Machine overall size

    L4500mm*W3500mm*H1650mm or customized

    2

    Machine overall size

    L4500mm*W3500mm*H1650mm or customized

    3

    Working table size(L*W)

    3500mm*1500m or customized

    4

    Land required (L*W*H)

    Customized

    5

    Labor required (persons)

    1~2

    6

    Vacuuming system

    2 sets hydraulic

    7

    Silicone membrane working table

    2 sets

    8

    Waste exhausting and security system

    2 sets

    9

    Heat preservation device

    2 sets

    10

    Heating power

    1.2KW

    11

    Vacuum pump power

    1.5KW

    12

    Heating time

    3~5min

    13

    Transfer printing temperature

    120~140℃

    14

    Machine weight

    1300~2200KG

    15

    Pressure

    0.7-0.8Mpa

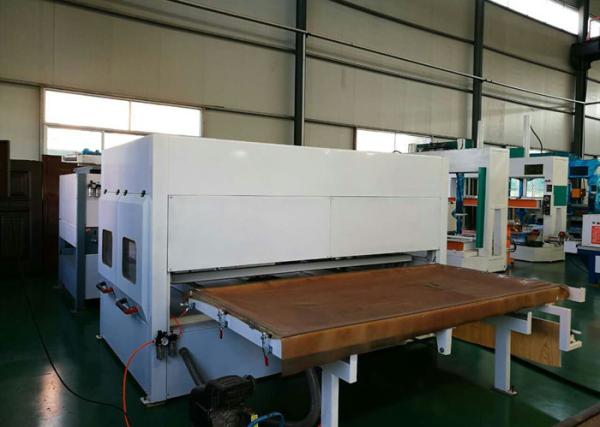

    2.Product Pictures


    3.Product transfer effect

    4.Advantages

    4.1. Perfect decoration effect:


    Wood effect decoration is good, clear patterns,strong adhesion,without decoration leakage on deep slot,corner turns

    4.2. Low cost and high efficiency

    Compared to original manual transfer printing method,this new type transfer printing machine has two working tables (alternative working),1~2

    workers enough to finish the whole working process. It takes 5~8 mins to finish wood effect decoration process,open the working table,remove the

    transfer film,no any additional working process.

    4.3. Durable

    1).The vacuum suction use special PVC plastic films,good adsorption,heat resistance and long life time

    2). Electric control system adopts domestic and foreign well-known brands which is safe and reliable.Ensure the transfer printing machine running

    safely and effectively,reduce frequency and cost of maintenance.

    4.4. Easy operation

    It is very easy to operate this machine,no need more technical training.

    5.Our Service

    Pre-Sales Service

    * Inquiry and consulting support.
    * Sample testing support.
    * View our Factory.

    After-Sales Service

    Guarantee and after-sale service
    The guarantee period of machinery is 12 months after shipping. The buyer should follow the operation instruction and maintenance instruction provided by the seller. Within the guarantee time, the buyer should be responsible for quality problem of the equipment except for man-made damage or problem caused by wrong operation. After guarantee period, the seller will provide necessary support on the customer’s demand and charge reasonablely based on material cost.

    6.Packing & Delivery



    Quality Vacuum Wood Grain Machine For Wooden Door 3500mm*1500m Working table for sale
