Product Application

The vibrating powder coating machine, which is designed to use the powder manufacturer's original carton. Highest flexibility, Minimal color change times, For direct transport from the original powder carton, Complete emptying of the powder box thanks to the tilted vibrating base, integrated fluidization .

1. Configuration:
Complete manual spray gun including: Manual gun, host, powder pump, trolley, motor, oil-water separator, air pressure regulating valve
2. Technical parameter
A). Host: Input power voltage: 90-260v 50-60Hz
Input power: 40w
Different countries, different standard
B). Powder supply &air soure
Electromagnetic valve control power voltage: 24v DC
Input air pressure: 0-0.6Mpa
Output air pressure: 0-0.5Mpa
Max. Air consumption: 13.2m/h(0.4Mpa)
C). Powder gun
electrostatic powder gun
Input air pressure: ≤0.3Mpa
Output powder volume: Max. 550g/min
Output power voltage: 0-100kv
Output current: 0-150uA
Gun weight: 480g

Operating instructions

1. Operation
The operator should hold the gun in his bare hand
If gloves are worm, the palm should be out to assure skin to metal contact
The operator should wear shoes with conductive shoes e.g leather
Rubber shoes are not conductive .
Ground the tip of the gun before cleaning or changing nozzles.
When the gun is not in use, it should be hung so that the nozzle is within four inches of a grounded conductor
The operator should wear a filter-type respirator anytime he is exposed to dusty conditions
High pressure powder many cause injury , Keep the rear switch “off” position in no –use condition
2. Maintenan
Make a periodic confirmation of grounding to earth of all equipment in the spray area.
Exercise good housekeeping practices; Do not allow dirt or powder to accumulate on the feeder /powder unit, cable or gun.
Keep the cabinet door closed.

Main Features

1.Constant and reliable coating performance.
2.Saving and accessing up to 50 coating programs.
3.manual gun with high-performance cascade.
4.Control unit with a regulated air volume cycle.
5.make color change quicker and easier.
6.Ergonomic and fatigue-free working.

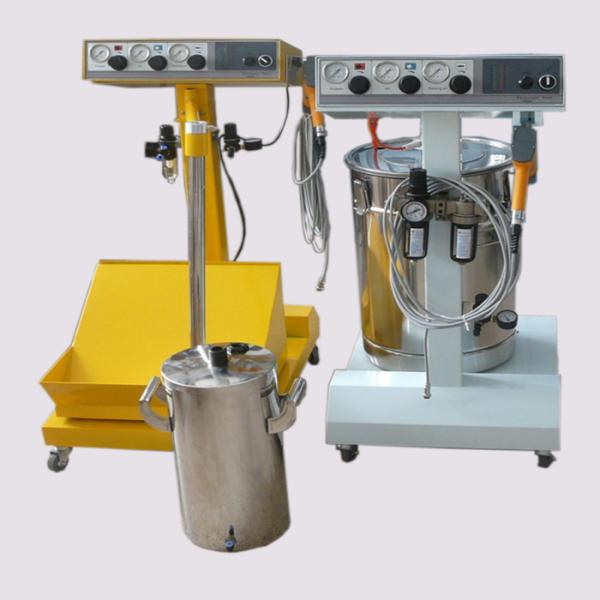

Product Pictures

Packing & Delivery

According to the characteristics of products, transportation, environmental factors .We use cartons, wooden case and other professional packaging, through heavy card, container, bulk carrier and other transportation tools .put the goods safe and timely to the custome

Our Service

The guarantee period of machinery is 12 months after shipping. The buyer should follow the operation instruction and maintenance instruction provided by the seller. Within the guarantee time, the buyer should be responsible for quality problem of the equipment except for man-made damage or problem caused by wrong operation. After guarantee period, the seller will provide necessary support on the customer’s demand and charge reasonablely based on material cost.
